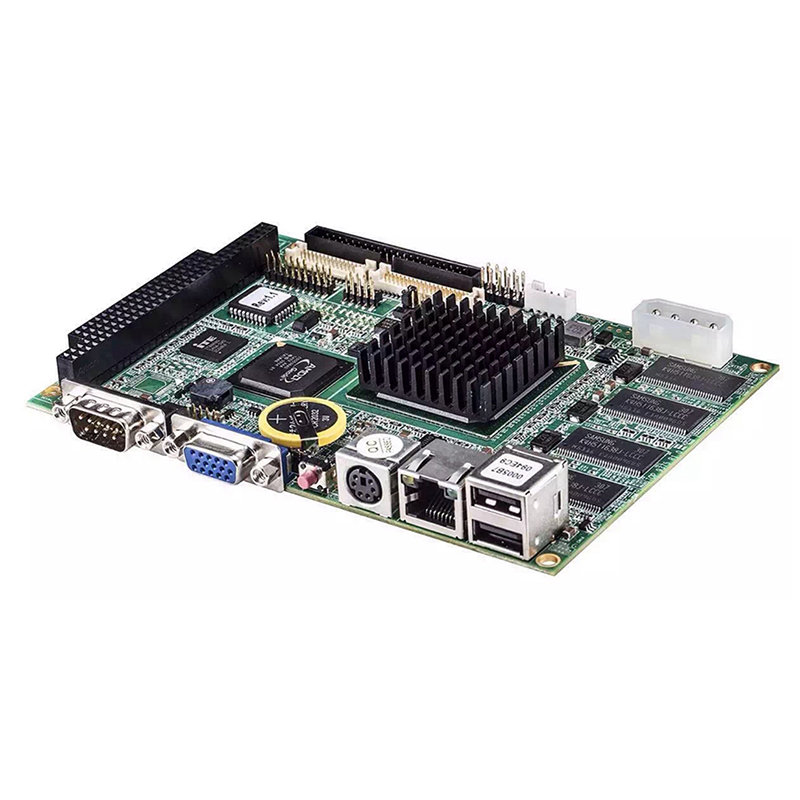

E35-LX800V2
★ 板贴256M DDR SDRAM
★ VGA + LVDS + 模似RGB
★ 1*RTL 8100CL 10/100M 网络
★ 2*COM, 1*PC/104总线
★ 3.5寸，146mm*104mm
E35-LX800V2
Processor | CPU | AMD® Geode LX800-500MHz |
CPU Package | Onboard | |
FSB | 100Mhz | |
Chipset | AMD® Geode CS5536 | |
BIOS | AWARD 2Mbit Flash BIOS | |
Memory | Architecture | DDR266/333 |
Capacity | 256MDDR | |
Display | Graphic Controller | Onboard AMD® GeodeLX800 |
LCD | Support 18~24bit single channel TFT output | |
Max. resolution: 320 * 240 ~1600 * 1200@24 bpp (60 Hz) | ||
LVDS | Support single channel 18bit LVDS output | |
Max. resolution:1024 * 768 | ||
VGA | 1* standard DB15 VGA connector | |
Max. resolution: 1600 * 1200 | ||
Dual Display | CRT + LCD, CRT + LVDS | |
LAN | LAN : Realtek RTL8100CL 100M LAN | |
Audio | Realtek ACL203, support AC97 standard audio | |
Super I/OController | SMSC-3114 / 3116(optional) | |
H/W Monitor | Watch Dog Timer | Timer 1 - 25 5 sec./min., support system reset |
I/O | USB | 4*USB 2.0 / 1.1 compatible |
Serial Port | 2 * RS-232 | |
Parallel Port | 1*LPT pin header, support SPP / EPP mode | |
PS/2 | 1*PS2 | |
Storage | CF | 1 |
IDE | 1 | |
Extension bus | PC104 BUS | |
Power | Power Type | DC +5V single power(optional ATX mode) |
Power Consumption | +5V @ 3A | |
Typical Power:15W | ||
Environment | Operating Temp | -20°C ~ 70°C |
Storage Temp | -40°C ~ 85°C | |
Operating Humidity | 0% ~ 90% relative humidity, non-condensing | |
Storage Humidity | 0% ~ 90% relative humidity, non-condensing | |
Form Factor | Dimensions | 102mm * 145mm |
Weight | 0.148kg | |
Regulatory Compliance | FCC, CE, RoHS compliant | |
产品规格
-
E25-N1500
■Intel® Processor N-series N150 Processor
■Memory: Supports DDR5 SO-DIMM, up to 32GB
■Dual Display Support: 1 x HDMI and 1 x LVDS or eDP
■Storage & Expansion: 1 x M.2 E-Key, 1 x M.2 M-Key
■Comprehensive I/O: 2 x USB 3.2 Gen2, 4 x USB 2.0,
■COM :2 x RS-232/422/485
■Enhanced Security: Supports Intel fTPM
■Dual LAN : 2 x RJ45 for Realtek® RTL8111H GbE
-
E25-J6412
■ LPDDR4x 4GB onboard memory
■ 1 x HDMI 2.0b, 1 x LVDS/eDP
■ 2 x GbE
■ 2 x USB 3.1 Gen2, 3 x USB2.0
■ 1 x M.2 B-key (SATA/PCIe 3.0x1/USB3.1 interface)
■ 2 x COM(RS232/422/485), 1 x GPIO
■ 2.5” (100 * 72mm) -
E25-N97
■Intel® N-series SoC processor (formerly Alder Lake)
■Supports 1*DDR5 SO-DIMM
■Display: 1 x HDMI® 4K and 1 x LVDS and eDP
■Storage: 1 x SATA III, 1 x M.2 E-Key
■Rich I/O: 2 x USB 3.2 Gen2, 4 x USB 2.0
■COM: 2 x RS-232/422/485
■Size: 2.5” (100 * 72mm)
-
E25-J3455
■ Intel® Apollo Lake SoC Processor
■ Support 1 * DDR3L SO-DIMM up to 8GB
■ 1 * GbE LAN
■ Support HDMI and LVDS
■ DC IN :12 V
■ Size :2.5” (100 * 72mm)
-
E35-LX800
★ 板贴AMD LX800 CPU
★ 板贴256M/512M DDR SDRAM
★ VGA + LVDS + 模似RGB
★ 2 *RTL 8100CL 10/100M 网络
★ 6*COM
★ 3.5寸，146mm*104mm
-
E35-ADLS610
★Intel® 第 12/13 代 Core™ i9/i7/i5/i3/Pentium®/Celeron® 处理器，支持 LGA 1700 CPU 最高 35W；
★英特尔® Q670E/H610E 芯片组
★1*DDR5 4800MHz SO-DIMM插槽，最大支持32GB
★显示：1 x DP++、1 x HDMI、1 x 2CH LVDS 或 1x eDP
★1* M.2 Key-E、1*M.2 Key-M
★2*2.5G千兆以太网
★2* RS-232/422/485
★DC in，+12V
-
ENBOX-9901
*Intel®第六Sky Lake系列低功耗处理器
*SODIMM DDR4低电压内存插槽
*2x HDMI显示接口
*5 x Intel®I210 GbE LAN
*1 x RS232串口
*6 x USB3.0/2.0 Port
*1 x Mini PCIeX1、1 x SATA、1 x M-SATA
*支持3G/4G通讯模块, 1 x M2 Key E
*9V~30V宽范围输入
-
ENBOX-6601
*Intel®第六Sky Lake系列低功耗处理器
*SODIMM DDR4低电压内存插槽
*Intel® HD Graphics集成显卡
*1 x HDMI/1 x VGA显示接口
*2 x Intel®I210 GbE LAN
*4 x RS232串口, 2 x RS232/485可选串口
*12 x USB3.0, 4 x USB2.0 Port
*1 x Mini PCIeX1、1 x SATA、1 x M-SATA
*支持3G/4G通讯模块, 1 x M2 Key E
*9V~30V宽范围输入
-
ENBOX-7701
*Intel®第六Sky Lake系列低功耗处理器
*SODIMM DDR4低电压内存插槽
*Intel® HD Graphics集成显卡
*1 x HDMI +1 x VGA显示接口
*2 x Intel®I210 GbE LAN
*10x RS232串口，4 x RS232/RS422/485可选
*4x USB3.0, 4 x USB2.0 Port
*1 x Mini PCIeX1、1 x SATA、1 x M-SATA
*支持3G/4G通讯模块, 1 x M2 Key E
*9V~30V宽范围输入
* 提供IEC60028认证 -
ENBOX-5501
*Intel®第六Sky Lake系列低功耗处理器
*SODIMM DDR4低电压内存插槽
*Intel® HD Graphics集成显卡
*1 x HDMI/1 x VGA显示接口
*2 x Intel®I210 GbE LAN
*4 x RS232串口, 2 x RS232/485可选串口
*4 x USB3.0/2.0 Port, 4 x USB2.0 Port
*1 x Mini PCIeX1、1 x SATA、1 x M-SATA
*支持3G/4G通讯模块, 1 x M2 Key E
*9V~30V宽范围输入
